Hydraulic Hose SAE100 R5

INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: single layer of steel wire braided
COVER: single layer of fibre braided
Hydraulic Hose SAE100 R5 TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)
Hydraulic Hose STANDARD: SAE 100 R5

Description

Hydraulic Hose SAE100 R5

SAE 100 R5 steel wire reinforced hydraulic hose is suitable for impacted medium pressure hydraulic petroleum-based oils, lubricating oils, overheating lubricating oil and water & air piping, such as air brake, power steering, fuel filter, turbocharger and oil cylinder of heavy commercial vehicles. It is composed of three parts: tube, reinforcement and cover. The tube is made from black synthetic rubber, which is resistant to oils and heat. The reinforcement is made from one layer of single high tensile braided steel wire, making the hose have solid structure. The cover is made from braided fiber, making the hose resistant to weather and ozone.

24.2

Figure 1. Hydraulic Hose

24.5

Figure 2. Hydraulic Hose

24.4

Figure 3. Hydraulic Hose

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Hydraulic Hose SAE100 R5”

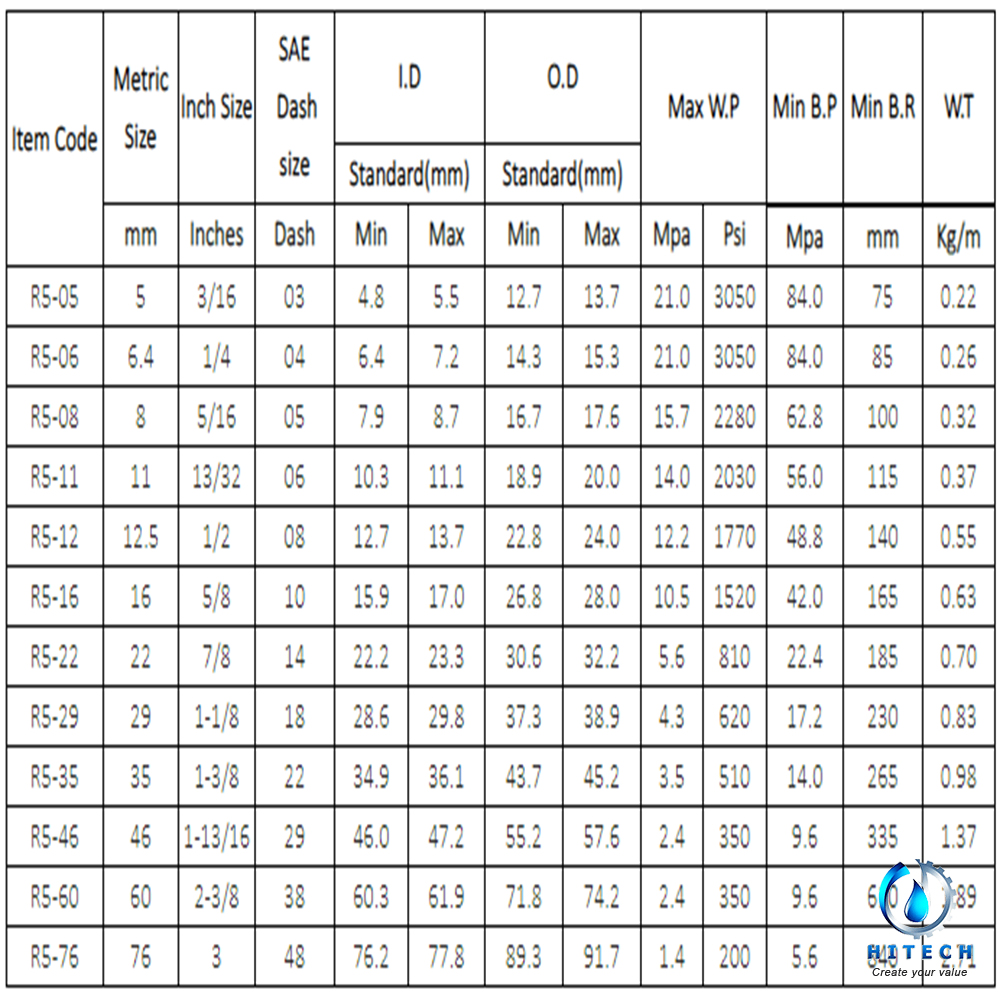

SPECIFICATION

Hydraulic Hose SAE100 R5

Original:

China

Brand:

Hitech

Period of Guarantee:

12 Month

Features - Benefits:

Hydraulic Rubber Hose SAE100 R5 .Petroleum base hydraulic fluids resistant line. Meets or exceeds requirements of SAE 100 R5.

Application:

petroleum base and water base hydraulic fluids

Specification:

INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: single layer of steel wire braided
COVER: single layer of fibre braided
APPLICATION: petroleum base and water base hydraulic fluids
Hydraulic Hose SAE100 R5 TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)
Hydraulic Hose STANDARD: SAE 100 R5

Maximum Operating Pressure:	275 to 400 bar
Hose I.D.(size):	'1/4 to 1/2 inch, 6.4 to 13 mm
Operating Temperature:	-40 °C -40 °F to 100 °C 212 °F (Air) 70 °C (Water) 85 °C
Hose Reinforcement Material:	One high tensile steel wire braid.

Maximum Operating Pressure:	165 to 400 bar
Hose I.D.(size):	'1/4 to 1 inch, 6.4 to 25.4 mm
Operating Temperature:	-40 °C -40 °F to 100 °C 212 °F (Air) 70 °C (Water) 85 °C
Hose Reinforcement Material:	One high tensile steel wire braid.

Maximum Operating Pressure:	350 to 350 bar
Hose I.D.(size):	1-1/4 to 2 inch, 32 to 51 mm
Operating Temperature:	-40 °C -40 °F to 100 °C 212 °F (Air) 70 °C (Water) 85 °C
Hose Reinforcement Material:	Six high tensile steel wire braid.

Maximum Operating Pressure:	250 to 420 bar
Hose I.D.(size):	3/4 to 2 inch, 19,2 to 51 mm
Operating Temperature:	-40 °C -40 °F to 100 °C 212 °F (Air) 70 °C (Water) 85 °C
Hose Reinforcement Material:	Four high tensile steel wire braid.

Hydraulic Hose SAE100 R5
