Hydraulic Hose SAE 100R1 AT / DIN20022 EN 853 1SN
Back to products
Next product
22.5
Hydraulic Hose SAE100 R3

Hydraulic Hose SAE100 R2/EN 853 2SN

  • INNER TUBE: oil resistant synthetic nitrile rubber
  • REINFORCEMENT: two layers of steel wire braided
  • COVER: oil and weather resistant synthetic rubber
  • Working Temperature: -104℉ to +212℉ (-40℃ to +100℃)
  • SURFACE: wrapped surface,smooth surface
Compare
Add to wishlist
Category: Hydraulic Hoses
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
  • Thông số kỹ thuật
Description

Hydraulic Hose SAE100 R2/EN 853 2SN

SAE 100 R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-based hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils. The reinforcement is made from two layers of high tensile braided steel wires, making the hose have solid structure and resistant to high pressure. Therefore, it has excellent performance in high pressure working environment. The cover is made from high quality synthetic rubber, which is resistant to weather, ozone, corrosion, abrasion, aging, sunlight and cut. The hose has longer service life as a result.

21.1

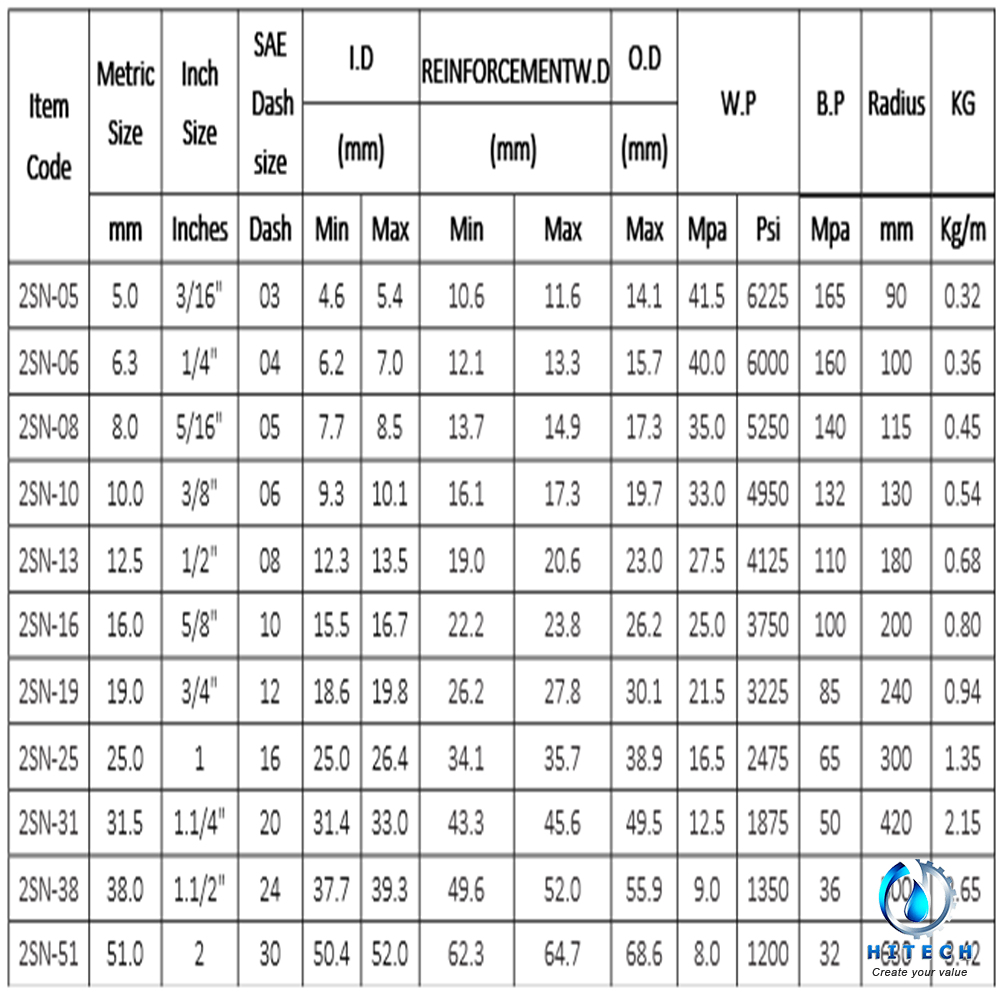

Figure 1. Hydraulic Hose

21.6

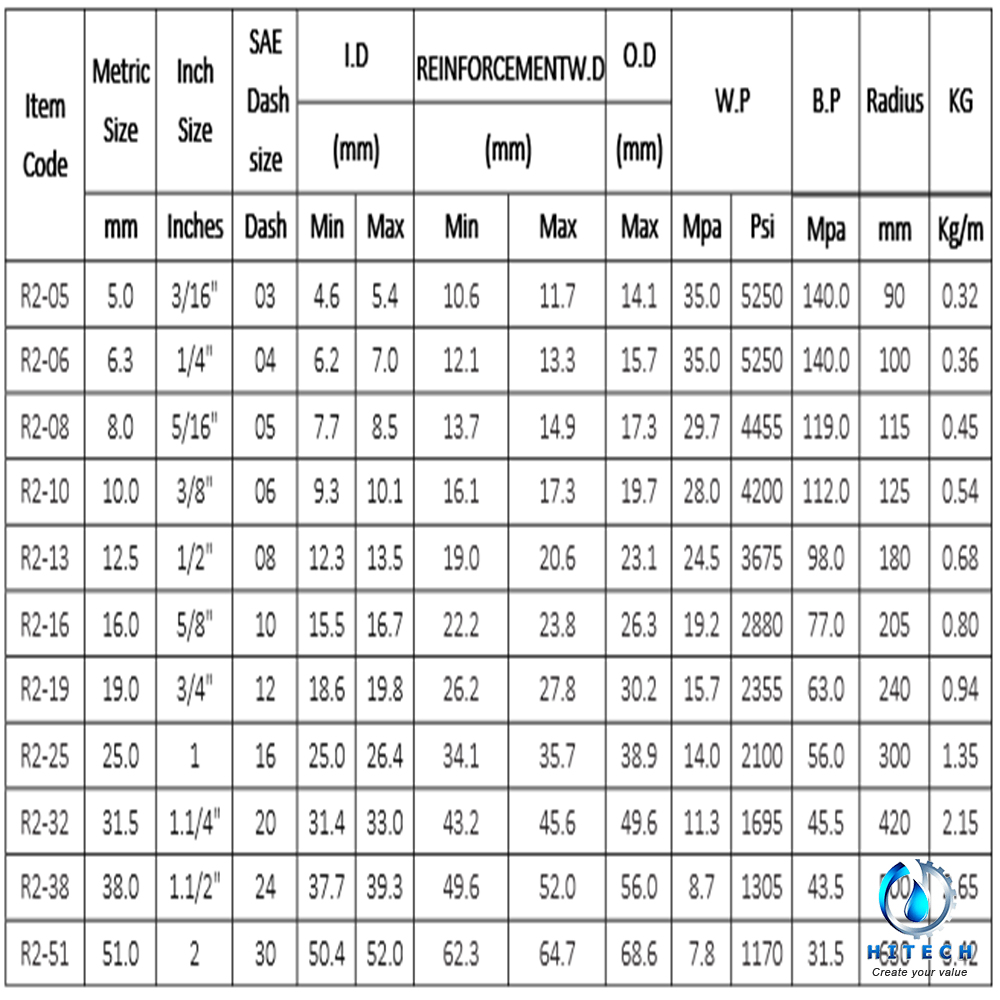

Figure 2. Hydraulic Hose

21.8

Figure 3. Hydraulic Hose



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Hydraulic Hose SAE100 R2/EN 853 2SN” Cancel reply

Your email address will not be published. Required fields are marked *

Thông số kỹ thuật

Hydraulic Hose SAE100 R2/EN 853 2SN

Xuất xứ:

Thương Hiệu:

Thời gian Bảo Hành:

Tính Năng & Lợi Ích:

Ứng Dụng:

Thông Số Kỹ Thuật:

Related products

18.3
13.2
Compare
Close

Hydraulic Hose SAE 100 R15 – ISO 3862-R15

Maximum Operating Pressure: 420 bar
Hose I.D.(size): 1-1/4 to 2 inch, 32 to 51 mm
Operating Temperature:  -40 °C -40 °F to 100 °C 212 °F (Air) 70 °C (Water) 85 °C
Hose Reinforcement Material: Six high tensile steel wire braid.
Add to wishlist
Read more
Quick view
7.2
28.5
Compare
Close

Hydraulic Hose SAE100R16

INNER TUBE: oil resistant synthetic nitrile rubber REINFORCEMENT: 4 layer(3/4,1″),6 layer(1 1/4,1 1/2, 2″) steel wire spiral COVER: oil and weather resistant synthetic rubber HITECH is a supplier and distributor of Parker USA brand products in Vietnam market.
Add to wishlist
Read more
Quick view
22.5
22.8
Compare
Close

Hydraulic Hose SAE100 R3

  • INNER TUBE: oil resistant synthetic nitrile rubber
  • REINFORCEMENT: two layers of high strength fiber braided
  • COVER: oil and weather resistant synthetic rubber
  • SURFACE: wrapped surface,smooth surface
  • Hydraulic Hose SAE 100 R3 TEMPERATURE RANGE: -40℃ (-104℉ ) to +100℃(+212℉)
  • Hydraulic Hose SAE 100 R3 STANDARD: SAE 100 R3
Add to wishlist
Read more
Quick view
27.1
27.7
Compare
Close

Hydraulic Hose SAE100 R8

  • INNER TUBE: Oil resistant seamless thermoplastic Polyamide (PA) tube.
  • REINFORCEMENT: one or twoe layer braided high tensile aramid fibre
  • COVER: Black high abrasion resistant polyurethane.
  • SAE 100 R8 Thermoplastic Hydraulic Hose TEMPERATURE RANGE: -40℃ (-104 ℉ ) to +100℃(+212 ℉)
Add to wishlist
Read more
Quick view
20.8
28.1
Compare
Close

Hydraulic Hose SAE100R9/R10/R12

  • Tube: Black, oil-resident synthetic rubber (Nitrile)
  • Reinforcement: Four alternating layers of spiraled, high-tensile steel wire.
  • Cover: Black, oil-resistant synthetic(Nitrile).
  • SAE 100 R9/R10/R12 Steel Wire Spiraled Hydraulic Hose Temperature Range: -40℉ to +250℉ (-40℃ to +121℃)
Add to wishlist
Read more
Quick view
Ryco 7
Ryco 1
Compare
Close

RYCO Hydraulic Hose SAE100 R1 / EN 853 1SN

TUBE: Black, oil resistant synthetic rubber. REINFORCEMENT: Four alternating layers of spiralled high tensile steel wire. COVER: DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Extra thin cover suitable for non-skive and skive couplings. Highly visible layline branding for easy and permanent identification. No skiving required with T6000 and T7000 Series Crimp Couplings.
Add to wishlist
Read more
Quick view
12.2
13.2
Compare
Close

Hydraulic Hose EN 856 R13 – SAE 100 R13 – ISO 3862-R13

Maximum Operating Pressure: 350 to 350 bar
Hose I.D.(size): 1-1/4 to 2 inch, 32 to 51 mm
Operating Temperature:  -40 °C -40 °F to 100 °C 212 °F (Air) 70 °C (Water) 85 °C
Hose Reinforcement Material: Six high tensile steel wire braid.
Add to wishlist
Read more
Quick view
Products Isobaric Braid Featured
Ryco 1
Compare
Close

RYCO Hydraulic Hose SAE100 R4

Inner Tube: oil resistant synthetic nitrile rubber Reinforcement: 2 layer or 4 layers of high strength synthetic textile and helix steel wire Cover: oil and weather resistant synthetic rubber HITECH is a supplier and distributor of Parker USA brand products in Vietnam market.
